● Problem 663: Pressure loss calculation of pipe network and pipeline characteristic ● Problem 1081: Calculation of pipeline system constant from measured pressure loss ● Problem 265: Calculation of pump operating point and pipeline characteristic

– page 14 –

Change in pressure loss due to pipe fouling or corrosion

● Problem 379: Calculation of the increase in pressure loss over time due to fouling

– page 17 –

Pressure loss at significant density change

● Problem 109: Calculation of Laval nozzle dimensions in flow with losses ● Problem 1271: Calculation of steam throttling ● Problem 650: Calculation of labyrinth seals for given pressure loss

– page 19 –

References

– pages 20-27 –

Appendices

View PDF

– Online shop –

If you found this article helpful, you can purchase the full version in my online shop. Thank you for your support, and I wish you every success with your projects.

Jiří Škorpík

author

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 2

– author: –

ŠKORPÍK, Jiří (LinkedIn.com/in/jiri-skorpik)

– issue date: –

April 2010, May 2021, June 2023, April 2024 (4th ed.)

– title: –

Pressure loss at fluid flow and its calculation

– proceedings: –

transformacni-technologie.cz/index_en.html#fluid-dynamics

– provenance: –

Brno (Czech Republic)

– email: –

skorpik.jiri@email.cz

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 3

Description of pressure loss development and basic concepts

During the fluid flow, friction on the surface of the channel and the flowing bodies as well as friction inside the fluid (internal friction). Through friction, the fluid loses kinetic energy and in order to flow through the channel at the required velocity (flow rate), it must gain kinetic energy at the expense of pressure energy - a pressure loss L_p is created, or at the expense of other energy, such as potential energy, etc.

Fluid friction in pipe and its consequences: Figure 833 shows the simplest case of pressure loss occurring when an incompressible fluid flows in a constant cross-sectional area pipe. Since the inlet and outlet of the duct must have the same flow, and therefore velocity, with no change in potential energy, the pressure loss L_p is equal to the pressure drop between the inlet and outlet, see Equation 833a.

– 833: –

Fluid friction in pipe and its consequences

A [m²] flow area; F [N] friction force acting between pipe wall and fluid; l [m] investigated length of pipe; L_p [Pa] pressure loss on investigated length of pipe; L_q [J·kg^-1] heat loss due to internal fluid friction; p [Pa] pressure; ρ [kg·m^-3] density of working fluid. The index _i indicates the inlet, the index _e the outlet. The derivation of the equations is shown in Appendix 833.

Loss heat: The loss heat L_q generated by friction heats the working fluid. The loss heat for the case of Figure 833 corresponds to the pressure energy of the pressure loss, see Equation 833b.

Friction force: The fluid acts through a friction force F on the channel in the direction of flow. The friction force on the pipe can be calculated using the pressure difference between the inlet and outlet and the flow area of the channel, see Equation 833c.

Pressure loss calculation criteria: The magnitude of the pressure loss is a function of the properties of the working fluid, the shape of the channel through which it flows and the roughness of the surfaces of the channel. The procedure for calculating the pressure loss in the channel under investigation depends on whether the flow in the channel is laminar or turbulent. This can be determined by the value of the Reynolds number for the case in question, for the calculation of which it is necessary to know the mean flow velocity of the fluid, the characteristic dimension of the channel (in the case of pipes this is the diameter) and the value of the kinematic viscosity. If the value of the Reynolds number is less than the value of the critical Reynolds number, then the flow is likely to be laminar, if the value of the Reynolds number is higher than the value of the upper critical Reynolds number, then the flow is likely to be turbulent.

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 4

Using pressure loss computational models: For normal technical practice, addressing pressure loss in piping networks with valves is essential.Determining the pressure loss helps to calculate the work of the pump or fan - part of this work is consumed by the pressure loss. Heat loss calculations are crucial in cryogenics for transporting liquefied gases via pipelines, preventing property loss or evaporation.

Pressure loss within nozles and diffusers: In addition to the pressure loss during the transport of fluids through pipelines, pressure loss also occurs during dynamic processes in channels designed to transform the pressure and kinetic energy of the fluid, such as nozzles, diffusers and blade channels of turbomachines.

Darcy-Weisbach equation for calculating pressure loss in pipe

The relationship for calculating the pressure loss for the case of laminar steady flow as function of dynamic pressure can be derived from the Navier-Stokes equations. This equation is called the Darcy-Weisbach equation, which was developed by the French engineer Henry Darcy (1803-1858) for pipelines, see Equation 657. Later, on the basis of long term experiments and deduction, the German engineer Julius Weisbach (1806-1871) confirmed the validity of this relationship for turbulent flows and even for losses in pipe fittings and valves.

– 657: –

ζ [1] loss coefficient of section related to kinetic energy of mean velocity (defined by Weisbach); V‾ [m·s^-1] mean velocity of mass flow (mean flow velocity).

Conditions for using Darcy-Weisbach equation: The use of Darcy-Weisbach equation is conditioned by the assumption that there is no density change in the pipe section under investigation. Yet, for gas transport in lengthy pipelines, density variations occur. Here, pressure loss calculations rely on mean gas density.

High-pressure gas pipeline paradox: The Darcy-Weisbach equation implies that for minimum pressure loss it is advantageous to transport gas at higher pressures and densities than at low pressures and high velocities. Therefore, the pressures in transit pipelines are around 7 MPa and the gas pressure is reduced before the appliances (see Table 1142), which are designed for lower pressures for safety reasons.

– 1142: –

Overpressures in natural gas pipelines

	p		p
Transit pipeline	7,5	Medium pressure gas pipeline	0,1...0,3
High pressure gas pipeline	4	Low pressure (household)	0,002

p [MPa] overpressure in gas pipeline.

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 5

Loss coefficient is both computational and experimental quantity: From the Darcy-Weisbach equation it follows that the pressure loss is a certain fraction of the dynamic pressure, this fraction is given by the value of the loss coefficient. For channels of constant flow area, the loss coefficient can be calculated using the equations given in the chapter Calculation of pipe loss coefficient. For other types of channels, such as elbows, valves, etc., see chapter Pressure loss in local resistances.

Calculation of pipe loss coefficient

The loss coefficient for a constant cross-section pipe is computed using Equation 855. It is therefore a function of the length and diameter of the pipe (d is taken to be the characteristic dimension if the pipe is of non-circular cross-section) and a quantity called the friction coefficient.

– 855: –

d [m] internal diameter of pipe; l [m] length of pipe; λ [1] friction coefficient in pipe on pipe section under investigation.

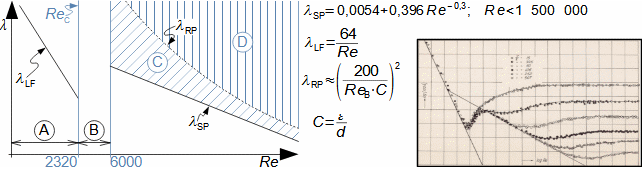

Friction coefficient for four possible flow cases based on the Nikuradse diagram: The equation for the pipe friction coefficient in laminar flow λ_LF can be easily derived from the Navier-Stokes equations, see Equation 658. The determination of the value of the friction coefficient at turbulent flow is based on the conclusion of measurements made by Johann Nikuradse on a series of glass pipes with artificial roughness using a sand film. Nikuradse measured the pressure loss of several pipes with different relative surface roughnesses for selected Reynolds numbers and from there calculated the values of the friction coefficient λ according to the Darcy-Weisbach equation (Equation 657 (p. 4)). From these values he produced a diagram of the dependence of the friction coefficient on the Reynolds number and confirmed the existence of four regions with different dependences of the friction coefficient on the Reynolds number, see Figure 658.

– 658: –

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 6

left-practical division of Nikuradse diagram into basic areas; right-view of original Nikuradse diagram [Nikuradse, 1933]. (A) the friction coefficient is linear function of only Reynolds numbers without influence of pipe roughness - laminar flow region; (B) transition region of flow from laminar to turbulent - both laminar and turbulent flow can occur; (C) turbulent flow region, in which friction coefficient is function of both Reynolds numbers and relative roughness of pipe; (D) turbulent region, in which friction coefficient is function of relative roughness of pipe – the higher relative roughness, the greater coeicient of friction. C [1] relative pipe roughness; Re [1] Reynolds number; Re_C [1] critical Reynolds number; λ_LF [1] friction coefficient for laminar flow, see Appendix 658 for derivation of equation; λ_SP [1] friction coefficient for turbulent flow in hydraulically smooth pipes (C→0) [Schiller, 1930] ; λ_RP [1] limit from which friction coefficient does not change with increasing Reynolds number, the so-called flow in hydraulically rough pipe [Moody, 1944]; ε [m] absolute roughness of inner walls of pipe (for values see Table 1194 (p. 7)).

Colebrook equation for the friction coefficient in pipes under turbulent flow: For turbulent flow region (regions (C) and (D) in Figure 658 (p. 5)), there is one universal equation with sufficient accuracy for common engineering practice. This equation, developed by Cyril Colebrook (1910-1997), see Equation 164, is based on approximate values from the Nikuradse diagram and supplemented by other measurements. The American engineer Lewis Moody (1880-1954) then created the widely used Moody diagram (nomogram), derived from the Colebrook equation, e.g. [Moody, 1944]. However, other empirical equations are used.

– 164: –

Marginal Reynolds number

In region (C), turbulent velocity profile develops. In region (D), the evolution is already complete and even with increasing Reynolds number, the ratio of the kinetic energy of the fluid in the boundary layer to the kinetic energy in the flow core does not change. The values of the marginal Reynolds numbers Re_RP, i.e. the approximate boundary between regions (C) and (D), can be calculated by substituting the equation for λ_RP into the Colebrook equation. Selected values of the marginal Reynolds numbers calculated in this way are given in Table 180.

– 180: –

Approximate values of marginal Reynolds number

	C	1·10^-6	1·10^-5	1·10^-4	0,001	0,01	0,01	0,04	0,05
	Re_RP	2,62·10⁹	2,22·10⁸	1,82·10⁷	1,42·10⁶	2,28·10⁵	1,02·10⁵	1,95·10⁴	1,48·10⁴

C [1]; Re_RP [1] marginal Reynolds number at which the friction coefficient ceases to be sensitive to the change in Re

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 7

– 1194: –

Approximate values of absolute pipe roughness

	ε		ε
Drawn pipes (new) from: Copper, Brass, glass	0 - 0,0015	Cast iron	0,26 - 1
Plastic	≤0,0015	Galvanized steel	0,15
Steel	0,04 - 0,1	Corroded steel pipes cleaned	0,15 - 0,2
Welded steel pipes	0,05 - 0,1

[mm]. Selection from [Stephan et al., 2010, p. 1058].

Pressure loss per unit length of pipe

For basic pipe route designs, designers use the quantity specific pressure loss in the pipe corresponding to the pressure loss in a 1 m long pipe, see also Nomogram 1199 (p. 8).

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 8

– 1199: –

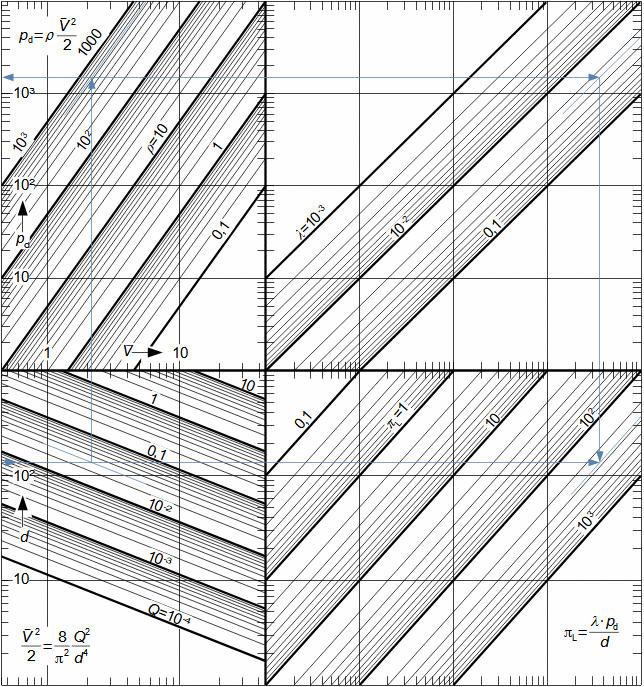

Nomogram for calculation of specific pressure loss, dynamic pressure and specific kinetic energy of fluid in pipe: p_d [Pa] medium dynamic flow pressure; d [mm], Q [m³·s^-1], V‾ [m·s^-1], ρ [kg·m^-3], λ [1], π_L [Pa·m^-1] specific pressure loss.

Pressure loss in local resistances

The pipe route (pipe network) is not usually straight and may consist of other pipe elements (branch pipes of various shapes, bends, constrictions), fittings, filters, meters and other flow parts, see Figure 1195 (p. 9). These elements are local resistances and local pressure loss occurs in them.

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 9

– 1195: –

Example of a pipeline route with local resistences

a-gate valve; b-closing valve (generally has higher pressure loss than gate valve); c-standard tee; d-narrowing of pipe; e-elbow.

Throttling in local resistance: Pressure losses in local resistances are usually much more intense than in a straight section of pipe due to the fact that the flow through these sections also changes the shape of the flow channel, the direction of the flow and often the fluid throttling. Inlets and outlets of the pipe can also be considered as a special case of local resistance. At the edges, the flow is usually unsteady and influenced by the shape of the beginning or end of the pipe.

Calculation of pressure losses due to local resistance: The pressure loss of local resistance can also be calculated according to Equation 657 (p. 4), using the mean flow velocity before the element as the mean flow velocity.

Determining loss coefficient value of local resistance elements: The loss coefficient ζ of some types of local resistances can be calculated, but more often it is based on measurements of the local resistance for different Reynolds numbers. However, for some types of local resistances the influence of the Reynolds number is not significant and tabulated values can be used, especially for valves and pipe fittings, e.g. in [Stephan et al., 2010, p. 1065]. The corresponding loss factor is provided by the manufacturer of the local resistor in question.

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 10

Alternative determination of valve loss coefficient: In the case of valves, the manufacturer usually also directly supplies diagrams of the dependence of their pressure loss on the flow rate (depending on the type of flowing medium). If the nominal flow coefficient of a K_VS valve is known, the loss versus flow can be calculated through Equation 661. The nominal flow coefficient is measured on the 2·d pipe section upstream of the valve and the 8·d pipe section downstream of the valve, so the loss coefficient calculated in this way includes this length of pipe - so the actual loss coefficient of the valve is lower by the loss coefficient corresponding to a 10·d smooth pipe. Approximate values of loss coefficients of some valves are given in [Stephan et al., 2010, s. 1073]. However, there are other types of coefficients, usually derived from the pressure loss of the valve. It depends on the manufacturer what methodology he uses to compare valves. The relevant relationships are then given in the valve catalogue.

– 661: –

Calculation of valve loss coefficient

d [mm] internal diameter of inlet of valve; K_VS [m³·h^-1] nominal flow coefficient of valve. The relation is derived for the water flow rate in [Roček, 2002, p. 236].

Approximate calculation of valve loss coefficient: For approximate calculation of the local resistance pressure loss, a quantity called the equivalent pipe length can also be used. This quantity gives the length of smooth pipe (expressed as the number of diameters of smooth pipe) of the same diameter as the input diameter of the local resistance under investigation with the same pressure loss. Equivalent pipe lengths of some valves and pipe fittings are given in [Fraas, 1989, p. 447], and a selection is given in Table 1200. The advantage is that in the calculation it is sufficient to add the individual equivalent lengths and calculate their total pressure loss as if they were the same length of hydraulically smooth pipe, see Problem 663 (p. 13).

– 1200: –

Equivalent pipe length l·d^-1 some valves and pipe fittings

	l·d^-1		l·d^-1
GLOBE VALVES
with no obstruction	340	Y-pattern with stem 60° from run of pipeline	175
with guided in flow area (under seat)	450	Y-pattern with stem 45° from run of pipeline	145
ANGLE VALVES
with no obstruction	145	with guided in flow area (under seat)	200
GATE VALVES
convetional wedge	13	conduit pipeline	3
pulp stock	17

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 11

	l·d^-1		l·d^-1
CHECK VALVES
conventional swing	35	in-line ball	150
clearway swing	50	foot valves with strainer with poppet lift-type disc	420
globe	340	foot valves with strainer with leather-hinged disc	75
angle	145	butterfly valves	20
COCKS
rectangular plug port area equal to 100% of pipe area	18	three-way	140
FITTINGS
90° standard elbow	30	square corner elbow	57
45° standard elbow	16	180° close pattern return bend	50
90° long radius elbow	20	standard tee with flow through run	20
90° street elbow	50	standard tee with flow through branch	60
45° street elbow	26
FLOW MEASUREMENT
turbine flow meter	150	orifice plates	200
piston meter	400

l·d^-1 [1] equivalent pipe length. Choice of [Fraas, 1989] supplemented by flow meters [Izard, 1961, p. 299].

Economic velocity in pipe

The Darcy-Weisbach equation links higher mean flow velocity to increased pressure loss. This, in turn, impacts the cost of acquiring and operating machinery (e.g., pump, fan). Larger pipeline diameters, reducing mean flow velocity, raise costs for pipeline routes and fittings. Usual economic velocities, balancing costs, are derived from this compromise [Stephan et al., 2010, p. 1063], as shown in Table 1197. However, factors like layout considerations may influence velocities beyond economic reasons.

– 1197: –

Economic velocity values in pipes

	V‾		V‾
oil	1...2	steam superheated to 4 MPa	20...40
water	1...4	steam superheated at high pressure	30...60, 80
low pressure heating steam	10...15	exhaust steam (after expansion in machine)	15...30
sat. steam up to 1 MPa	15...20	air (compressed)	2...4

V‾ [m·s^-1]

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 12

Pipe diameter calculation based on Economic velocity: The pipe diameter d is calculated from the design economic velocity, density and required specific flow rate, see Nomogram 1198. The calculated pipe diameter must be rounded off according to the manufactured pipe diameters corresponding to the pressure and temperature at which the pipe will be operated.

– 1198: –

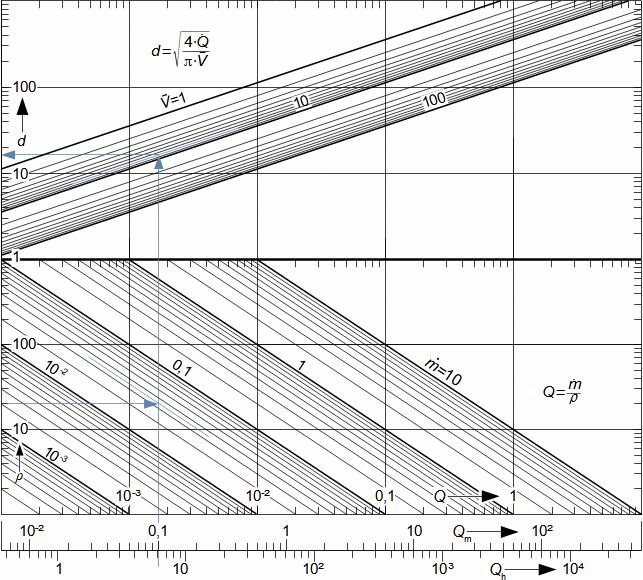

Nomogram for pipe diameter calculation: V‾ [m·s^-1], ρ [kg·m^-3], m^• [kg·s^-1] mass flow; m^•_m [kg·min^-1], m^•_h [kg·h^-1], Q [m³·s^-1] volume flow; Q_m [m³·min^-1], Q_h [m³·h^-1] volumetric flow rate through pipe, d [mm] pipe diameter.

Pipeline characteristic

The characteristic pipeline is the dependence of the pressure loss of the pipeline route on the volumetric flow rate. From the equation for calculating the pressure loss it is clear that at ρ=const. the pressure loss will be a quadratic function with a parameter C_S called the pipeline system constant, see Equation 662 (p. 13).

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 13

– 662: –

n [-] number of individual pipeline sections (each section has constant diameter along entire length); k [-] number of local resistances; L_pipe [Pa] pressure loss of pipeline section; L_component [Pa] pressure loss of local resistance; C_S [kg·m^-7] pipeline system constant; Q [m³·s^-1] volumetric flow. L_p,n [Pa] pressure loss at nominal flow Q_n through system. The equation is also valid for pipelines of non-circular flow area.

Pipeline system constant as function of valve lift: The piping system constant C_S is usually considered as a constant for a given opening of individual valves, but since the friction coefficient λ is a function of the Reynolds number, C_S must also change with the flow rate. However, this change is not very large if we are interested in the pressure loss in the nominal flow region. The pipeline system constant C_S is also changed by opening/closing the valves (change of their pressure losses), therefore several characteristic pipeline curves are sometimes given for individual stem valve positions.

Calculation of Pipeline system constant: The pipeline system constant can be calculated according to Equation 662 from the individual pressure losses of the pipeline system for a known (nominal) flow rate (see Problem 663) or it can be calculated from the measured pressure loss at a particular volumetric flow rate, see Problem 1081 (p. 14).

– Problem 663: –

Find the pipeline characteristic at the discharge of a condensate pump (see attached figure) in which condensate is pumped from the auxiliary condensate tank CT1 to the feed tank through the condensate heater H1. A parallel pipeline system with a redundant pump (blue) is connected to the route. The water temperature at the outlet of the pump is 60 °C and 105 °C behind the H1 heater. The flow rate through the pump is 2,4 m³·h^-1. The flow coefficient of ball valve 001 is 48,5 m³·h^-1. The check valve has a pressure loss of 5 kPa. The minimum pressure loss of the balancing valve is 750 Pa. The pressure loss of the water meter is 18 kPa. The pressure loss of heater H1 is 12 kPa. The piping is standard one-inch water main. The solution of this problem is shown in Appendix 663.

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 14

CT1-auxiliary condensate tank No. 1; H1-heater No. 1; WM1-water meter No. 1. The lengths of the individual sections of the piping system are given in metres.

– Problem 1081: –

Find the approximate value of the constant of the heating piping system. Hot water flows through the pipe. There are the measured flows through the system and the corresponding pressure loss given in the table below. Measured values adapted from [Pleskot, 1947, p. 17]. The solution of this problem is shown in Appendix 1081.

Table of measured values

	L_p	10	25,1	62	140	320	700	1400
	Q	19,64	29,64	50,07	74,61	113,9	161	233,7

Hodnoty naměřené tlakové ztráty v potrubí zakreslené na logaritmickém papíře

L_p [Pa], Q [m³·s^-1].

Change in pressure loss due to pipe fouling or corrosion

Fouling and corosion of pipes and heat exchangers usually gradually causes such problems that they need to be cleaned (increase in pressure in the piping system and the development of leaks, increase in pumping work, etc.).

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 15

~ Pipe fouling reduced its flow area: A fouling can form in the pipe if the liquid is not clean. Figure 154 shows the change in pressure loss in a pipeline when there is a uniform fouling in the pipeline - approximately the same percentage increase in pressure loss will increase the pumping work. The relationship in this figure was developed by substituting the Darcy-Weisbach equation into the pressure loss ratio L_p after reducing the flow area and the pressure loss L_p,n. From here it can be seen the reduction in diameter per pressure loss increases with the fifth power. On the other hand, even when absolute roughness is maintained, the effect of the change in friction coefficient is several orders of magnitude smaller.

– 154: –

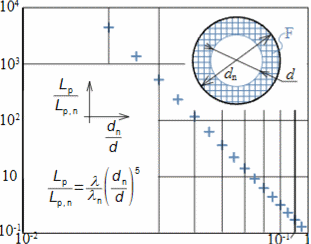

Change of pressure loss of pipe due to fouling

Created for d_n=100 mm; V_n=3 m·s^-1; ε_n=0,05 mm; υ_n=553,2 nm²·s^-1 (water at 50 °C); Q=const. F-fouling. The index _n indicates the parameters before fouling.

Pipe fouling caused by Solid and Biological particles and by Crystallization of minerals: Fouling of the pipeline may be caused by chemical or biological action or by solid particles in the liquid. In the case of a chemical or electrochemical process, minerals precipitate and crystallise on the internal surfaces of the pipe. The biofouling on the pipe can be of plant or animal origin - usually some kind of algae or crustacean - and are highly dependent on water temperature, nutrient content of the water and, in the case of algae, light conditions. A typical sign of fouling by solid particles in the liquid is that it is not evenly distributed along the length of the pipe. The solid particles are deposited in areas of low flow velocity, at the lowest points of the pipeline route where the fluid flow is unable to displace them and upstream of constrictions.

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 16

Critical velocity for pipe fouling: Scale deposition on the pipe walls does not occur at velocities of approximately 1,5 to 2,5 m·s^-1. However, at certain combinations of pH and temperature, this velocity may not be sufficient. Deposition of solid particles can be prevented from velocities as low as around 1,5 m·s^-1, but also depends on the orientation of the pipe and the size and mass of the individual particles. Biofouling of pipes can be prevented at velocities above 2 m·s^-1. The listed critical velocities of fouling are for water and the data are from [Pugh et al., 2009]. For other liquids, the limiting velocity may vary because a certain tangential tension, which is a function of viscosity, is required to prevent fouling at lower velocities and vice versa. Constant flow velocity (critical) during irregular pipeline operation can be maintained by creating loops on the exposed parts of the pipeline in which the fluid will flow at a constant velocity regardless of the flow rate between the inlet and outlet of the pipeline.

Prediction of pressure loss increase due to pipe fouling: The period when the pipes will need to be cleaned, that is, the shutdown time, can be predicted using statistics. This statistical method is based on the assumption that the increase in pressure loss follows a Rayleigh distribution, see Figure 156. To predict the increase in pressure loss due to pipeline fouling, it is sufficient to know an estimate of the operating time after which the pressure loss begins to increase, the expected modus of the rate at which the pressure loss increases most rapidly, and also the rate of increase in pressure loss at the start of fouling, see Problem 379 (p. 17). These estimates can be refined in real operation by measuring the pressure loss and thus refining the prediction of the increase in pressure loss over time.

– 156: –

Rayleigh distribution applied to pressure loss change

n [s^-1] change in pressure loss over time; t [s] time. The horizontal axis denotes the difference (V-V_n) because the Rayleigh distribution starts at zero and deposits form only after some time when the flow velocity is nominal V_n. The index _n indicates the parameters before fouling.

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 17

– Problem 379: –

Calculate the expected increase in pressure loss of the plate water/water exchanger using the statistical method. Scale crystallizes in the exchanger. The nominal flow velocity in the exchanger is 1 m·s^-1 and the nominal pressure loss is 0.185 bar. Based on experience with the operation of previous exchangers, the pressure loss starts to increase after 500 minutes with an initial rate of 0,2703·10^-3 min^-1, and the parameters of the (V-V_n)-n curve in Figure 156 (p. 16) are: n_max=2.1622·10^-3 min^-1; (V-V_n)_mod=1.1911 m·s^-1. During operation, the flow rate remains constant. The solution of this problem is shown in Appendix 379.

Increased pressure loss in heat exchanger due to clogging

L_p [bar]; t [min] time.

~ Pipe corrosion increasing friction in boundary layer: Pipe corrosion increases the absolute roughness of the pipe and causes a loss of pipe wall thickness. If the material loss does not cause a significant change in the flow surface area of the pipe, then, given the other parameters in the Darcy-Weisbach equation, the ratio of the pressure loss L_p to the pressure loss at nominal (initial) L_p,n can be expressed as a ratio of the coefficients of friction. The data in Table 1194 (p. 7) shows that corrosion can increase the pressure loss by tens of percent. Therefore, when calculating the pipe that will not be cleaned of corrosion, the pressure loss must be calculated as if the pipe were corroded.

Pressure loss at significant density change

In addition to fluid transport, we encounter dynamic gas flow in which the density of the gas can change significantly. If it is an adiabatic flow of gas through constant flow area, then the pressure loss can be determined by assuming that the stagnation enthalpy of the gas remains constant and equal to the stagnation enthalpy at the inlet, but the entropy will increase due to internal friction. Based on this assumption can be derived so called Fanno equation Equations 1061 (p. 18).

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 18

– 1061: –

V^*_i [m·s^-1] critical velocity for case of isentropic flow; κ [1] heat capacity ratio; A [m²] flow area of the channel; V [m·s^-1] velocity of gas in investigated point of the channel (this velocity corresponds to velocity during isentropic expansion from stagnation pressure p_s to static pressure p); G=const. If channel is not circular, characteristic dimension L is used instead of d as in incompressible flow. Derivation in [Dejč, 1967, s. 209], [Zucker and Biblarz, 2002, p. 283].

Friction coefficient at high velocities: The friction coefficient λ in Equation 1061 is a constant along the length of the channel, but in actual fact is more or less dependent on Re and the Mach number at the channel location under investigation. Experimental verification of the changes in the friction coefficient during compressible flow and the validity of Equation 1061 is carried out in [Dejč, 1967, p. 217].

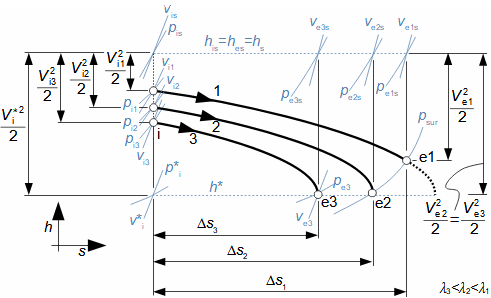

Fanno lines for constant flow area channel: In adiabatic gas flow, friction heats the gas, increasing its specific volume and velocity in a constant flow area channel. This leads to a gradual decrease in gas pressure and specific enthalpy. The Fanno line on the h-s diagram plots gas states along the channel axis. Figure 1059 depicts three Fanno lines for a channel of length l with varying friction coefficients λ, influencing pressure changes as the channel lengthens (the same effect as changes in the friction coefficient has on the pressure change as the channel lengthens). At the maximum λ₁, outlet flow doesn't reach critical velocity; λ₂ just reaches critical velocity, and λ₃, less than λ₂, also reaches critical velocity at the outlet.

– 1059: –

PRESSURE LOSS AT FLUID FLOW AND ITS CALCULATION

PAGE 19

h [J·kg^-1] enthalpy; s [J·kg^-1·K^-1] entropy; h_s [J·kg^-1] stagnation gas enthalpy; h* [J·kg^-1] critical enthalpy; p_sur [Pa] surrounding pressure at outlet of channel. The subscript _i denotes the initial gas state, the subscript _e the final gas state (at the end of the section/process under study). The subscript _s denotes the stagnation gas state.

Application of Fanno lines: In engineering practice, the theory is particularly applicable to the investigation of flow in non-contact seals. The principle of dry-running gas seals is also based on the high pressure loss associated with gas flow in a very small gap. However, even labyrinth seals can be likened to a smooth seal with a constant flow area and a particular coefficient of friction.

References

ŠKORPÍK, Jiří, 2022, Rotodynamics pumps, Brno, https://transformacni-technologie.cz/rotodynamic-pumps.html.

ŠKORPÍK, Jiří, 2022b, Essential equations of turbomachines, Brno, https://turbomachinery.education/essential-equations-of-turbomachines.html.

DEJČ, Michail, 1967, Technická dynamika plynů, SNTL, Praha.

FRAAS, Arthur, 1989, Heat exchanger design, John Wiley&Sons, Inc., ISBN 0-471-62868-9.

IZARD, Julien, 1961, Příručka technické fyziky, Státní nakladatelství technické literatury, Praha.

MOODY, Lewis, 1944, Transactions of the ASME, Friction factors for pipe flow, 66 (8). http://www.ipt.ntnu.no/~asheim/TPG4135/Moody.pdf

NIKURADSE, Johann, 1933, Strömungsgesetze in rauhen rohren, V. D. I. Forschungsheft, 361: 1–22, Berlin.

PLESKOT, Václav, 1947, Nomografie v technické praxi, Praha, SPASEI.

PUGH, Simon, HEWITT, Geoffrey, MÜLLER-STEINHAGEN, Hans, 2009, Fouling During the Use of “Fresh” Water as Coolant—The Development of a “User Guide”, Heat Transfer Engineering, 30:10-11, 851-858, DOI: 10.1080/01457630902753706.

ROČEK, Jaroslav, 2002, Průmyslové armatury, INFORMATORIUM, Praha, ISBN 80-7333-000-8.

SCHILLER, Ludwig, 1930, Rohrwiderstand bei hohen Reynoldsschen Zahlen, Vorträge aus dem Gebiete der Aerodynamik und verwandter Gebiete, Springer, Berlin. https://doi.org/10.1007/978-3-662-33791-2_13

STEPHAN, Peter (ed.), VDI Heat Atlas, Springer, Berlin, ISBN 978-3-540-77876-9.

ZUCKER, Robert, BIBLARZ, Oscar, 2002, Fundamentals of gas dynamics, JOHN WILEY &SONS , INC., Hoboken.
